Botanicare® Slide Bench System

Premium components, innovative design, and hundreds of configurations for flexible, adaptable, wall-to-wall coverage.

Lengths: 7’6” to 100’6”    Widths: 4’ and 5’    Heights: 12”, 20”, and 30”. 8½” of travel from center of benches for a minimum aisle width of 17”.

Trellis YOUR Way

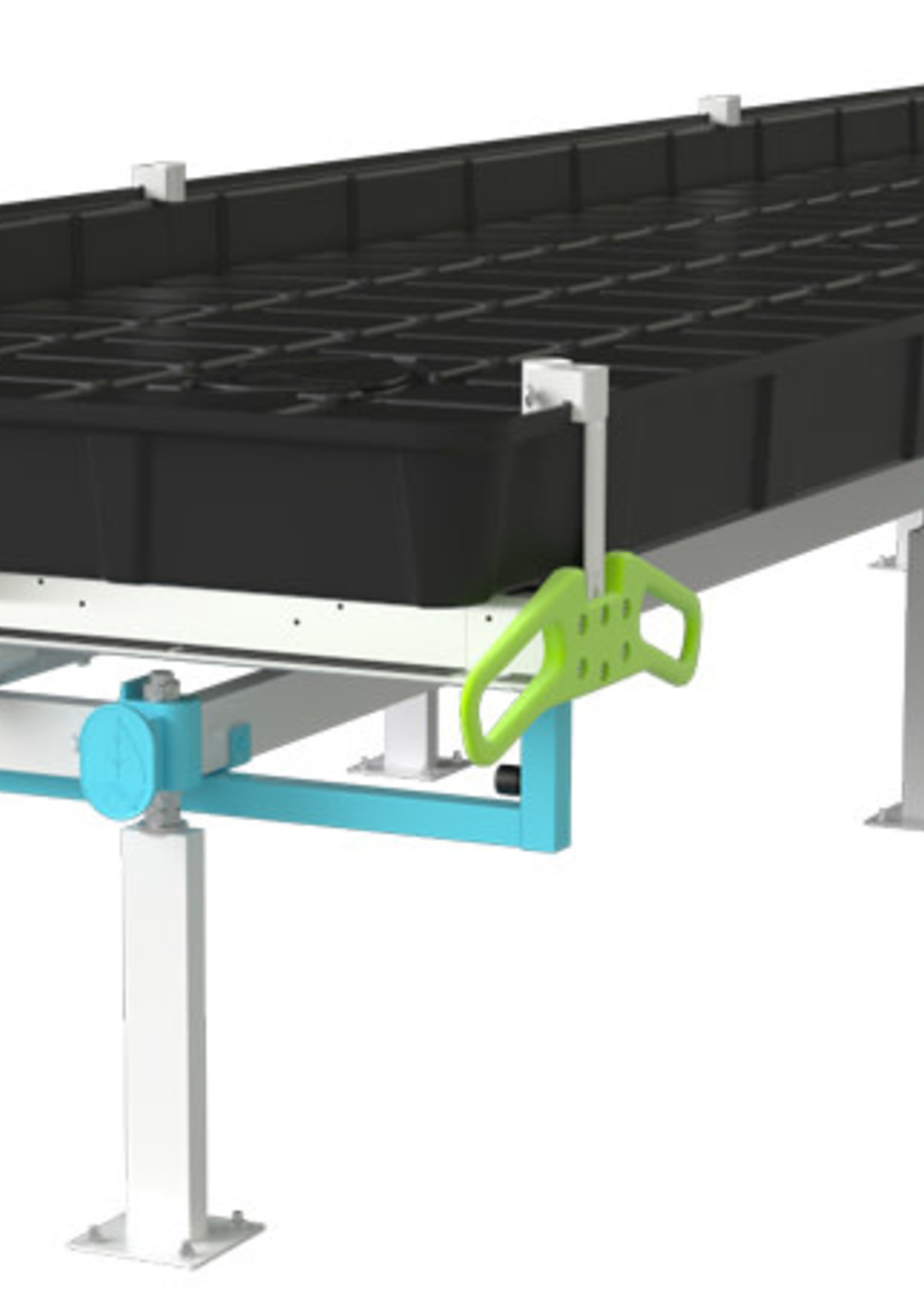

(STD Trellising Support - Left Image Above): We engineered the standard trellis supports to fit inside the frame structure to prevent interference with the aisles. This integrated feature also protects and secures tray seams and accepts 3/4″ PVC & 1″ EMT conduit for trellising structures. Designed to stay within 4’ and 5’ OD and support a fully-caged trellis system.

(NEW TriLock - Right Image Above): The Botanicare® TriLock™ Trellising Support is three times stronger than the standard support and accepts three different trellising types: 3/4″ EMT, 3/4″ PVC & 1″ EMT. Please Note: Because the TriLock support connects to the tray support extrusion, the overall system width will increase by 2¼”. (OD for 5’ wide bench = 5’2¼”, OD for 4’ wide bench = 4’2¼” )
